【HIFI lossless sound quality】 The lossless music player adopts professional DSP audio lC + imported DAC double decoding, which can effectively restore the real scene. The DAC hard decoding chip adopts the new WM8965 and Ti company's TPA6530 high power. Supported audio formats: MP3（8-48kHz,8-320kbps）、WMA（8-48kHz,5-384kbps,STD 8-96kHz）、WAV（8-192kHz）、APE（8-96kHz,high; 8-192kHz,fast）、FLAC（8-192kHz,LO-L10）、AAC（8-48kHz，8-320kbps,LC）、OGG（8-48kHz）、DSD 128（5.6MHz）.
【High-resolution music player】 The player adopts a 2.0-inch display with a resolution of 320*240, LCD display, intuitive and concise UI interface, user-friendly software operation is clear at a glance, the display has high color saturation, and can display lyrics and music. song title.
【Fashionable craftsmanship】The non-destructive music player is made of high-precision CNC aluminum alloy shell, which is elegant and portable, and does not leave fingerprints. The unique scroll wheel control wheel can quickly find the track function and is very responsive. The independent menu key and return key have a one-key lock screen function, which is easy to operate.
【Large capacity + large memory】The player has a large capacity battery of 1500 mAh, which can be fully charged in 2 hours and play continuously for 25 hours. The M30 player has no built-in memory, but an additional 64GB SD card has been inserted into the player, allowing you to better manage your song files without worrying about the memory capacity.（Expandable up to 256GB）
【Portability and Service】The size of the player is: 2.2*0.6*3.5 inches, and the weight is about 176g. The small size easily slides in and out of any pocket. Perfect to carry.
Product Description
Learn more about the MECHEN M30 HIFI player
Notes:
1. HIFI player without built-in memory, including a 64GB memory card, enough to store the music files you need, for larger, the player supports up to 256GB memory card.
2. Player music storage limit of 4000, beyond the tracks will not disappear, you can view the complete music files and list them at the folder function.
3. The player does not haveBluetoothandWIFIfunctions.[Only for music]
4. Player accessories do not include headphones, it is recommended to use professional high-definition headphones, which can better reflect the sound quality effect.
5. Player album cover pixel limit is 640 * 640, if, beyond this pixel, the artist and album may not appear on the screen.
6. The ACC files supported by the player can only be played in mono, not stereo.
7. The player does not support DTS 5.1 multi-channel movies.
8. We have uploaded the user guide on the detail page, please download and read it.
9. You have further questions, you can send us your questions through the information on the package or on the manual so that we can better answer and solve them for you.
If the album cover image does not appear, please check
If your album does not appear on the cover, please check the aspect ratio and the image size.
Image formats are accepted inJPGformat only, with a pixel size of640✖640
You can use third-party music assistance tools on the web to edit, of which we recommend the name:Kid3
Music file sorting rules
Music files are sorted by ASCII code rules
In short: music names are displayed first in Chinese/Japanese, followed by lowercase to uppercase numbers, and finally by the letters A-Z in order.
If you need to sort the order of songs, you need to name the track titles for sorting.
Recommended third-party tool:Kid3
Folder sorting rules
Using the FAT Sorter Tool
Folder sorting rules are based on the time of creation, i.e. the earliest saved folders are displayed at the top and the last created folders are displayed at the bottom.
However, you can use theFAT Sortertool to manage this so that your folders are sorted alphabetically correctly.
Shortcut button function
One button to return to the home menu
Some customers mentioned that in order to return to the home page, they have to click the back button several times, which is tedious.
Simply:long press the back button. Then you can go back to the home page directly.

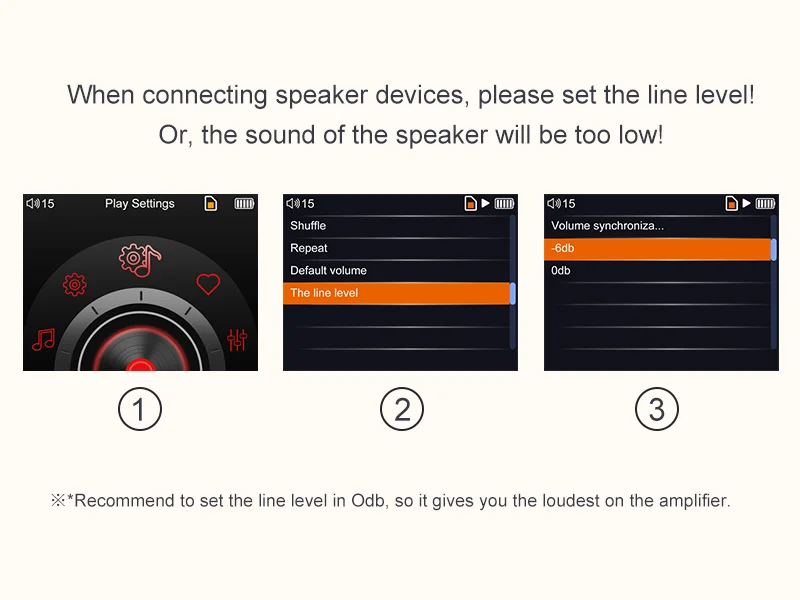

Set line level
Do not forget to set the line level
Some customers mentioned that when they use their HIF players to connect to speakers, the sound is very low.
One of the reasons is that the line level is not set.
You can enter the player home page, find the playback settings, find the line level, the default volume synchronization, you can set it to-6dbor0db, so that the amplifier audio sounds better.
Specifications
Screen Size |
2.0inch |
Screen Resolution |
IPS 320*240 |
S/N |
≥100dB |
Headphone output power |
≥80mW |
Audio output |
3.5mm headphone&line output |
Audio format |
MP3 WMA WAV APE FLAC AAC OGG AIFF DSD64 DSD128 DSD256 |
Line output |
Volume synchronization，-6DB，0DB optional |
Volume level |
100-level digital volume control method |
Battery capacity |
3,7V 1500mAh |
USB port |
MICRO 5PIN USB2.0 |
Weight |
176g |
Package Includes |
1 * Hifi Music Player 1 * USB Cable 1 * 64GB Memory Card 1 * User Manual |
What's in the box
1 * Hifi Music Player
1 * USB Cable
1 * 64GB Memory Card
1 * User Manual
