Advanced Whole Home WiFi

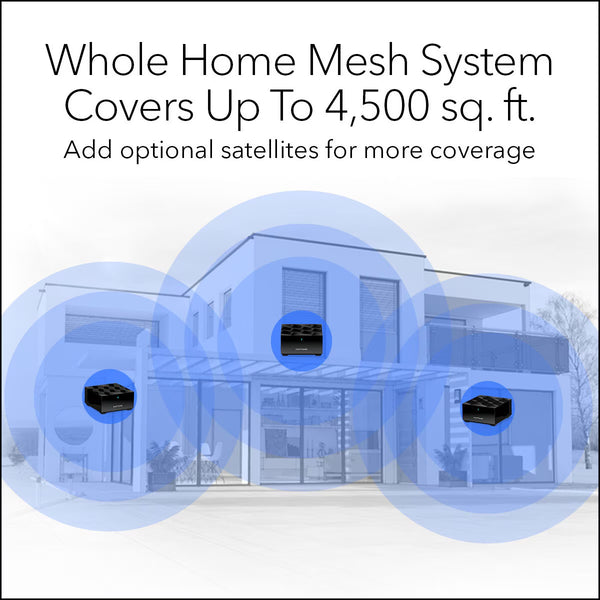

With Nighthawk® Mesh WiFi 6 System you'll enjoy advanced whole home WiFi designed to deliver smooth video streaming and fast online gaming to more devices at the same time. Experience coverage up to 420m2 for your home, including front and back yards, with combined speeds of 3Gbps.† Award-winning NETGEAR Armor™ protects your WiFi with an automatic shield of security across every PC, phone, camera, smart home device, & TV, etc. One-year subscription included.**

Key Features

• Whole Home WiFi—Eliminate WiFi dead zones by simply placing satellites throughout your
  home to form a smart, reliable WiFi network.
• Super-fast WiFi—Combined speeds up to 3Gbps† keep up with your family’s streaming,
  gaming, and smart home needs.
• Compact Design—Sleek, compact design makes it easy to place almost anywhere to
  enjoy stronger WiFi everywhere.
• Expandable—Extend coverage as needed with MS70 add-on satellites.
• It’s Easy—Easy setup with the Nighthawk app, customize and enjoy your new Nighthawk Mesh WiFi in minutes.
• 4-stream WiFi—Stream smooth 4K UHD content to smart TVs, mobile devices, and
  gaming consoles.
• Powerful Quad-core Processor—More processing power increases the overall performance of your network.

Technical Specifications

• AX3000 Router & Satellites (600 + 2400Mbps)†
• Simultaneous dual band WiFi
  - Radio 1: IEEE® 802.11b/g/n/ax, 2.4GHz—
  1024-QAM support
  - Radio 2: IEEE® 802.11a/n/ac/ax, 5GHz—
  1024-QAM support
• Tx/Rx: 2x2 (2.4GHz) + 2x2 (5GHz)
• IEEE® 802.11a/b/g/n/ac/ax
• MU-MIMO capable for simultaneous data streaming
• Uplink & Downlink OFDMA1 — Improved capacity and efficiency
• Explicit Beamforming for 2.4GHz & 5GHz bands
• Wi-Fi Easy Mesh™ compatible
• Processor — Router & Satellites:
  - Powerful quad-core 1.7GHz processor
  each
• Memory — Router:
  - 256MB flash and 512MB RAM
• Antenna:
  - Four (4) high-performance internal
  antennas each

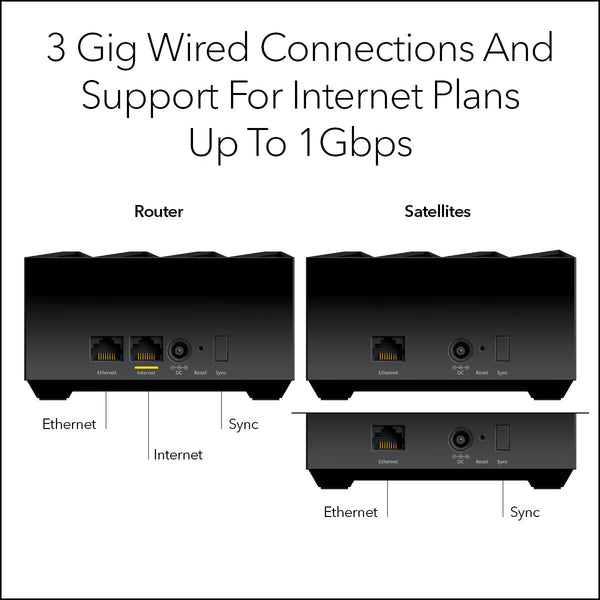

• Ports — Router:
  - One (1) 10/100/1000Mbps Gigabit
  Ethernet WAN port
  - One (1) 10/100/1000Mbps Gigabit
  Ethernet LAN port
• Ports — Satellites:
  - One (1) 10/100/1000Mbps Gigabit
  Ethernet LAN port
• Push button WPS/SYNC support

Services & Security

• Nighthawk App — Use the Nighthawk App to easily setup, monitor and manage your Nighthawk Mesh WiFi, and access exclusive NETGEAR services
• Award-winning NETGEAR Smart Parental Controls™ — Easily manage your kids’ time online across their connected devices and promote healthy Internet habits wherever they are. Additional features are available with a Premium subscription.†† Learn more at
• NETGEAR Armor™— Award-winning NETGEAR Armor™ protects your WiFi with an automatic
  shield of security across every PC, phone, camera, smart home device, & TV, etc. Oneyear subscription included.** Learn more at
• Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
• Guest WiFi Network is easy to setup separate & secure Internet access for guests
• WPA3-Personal provides more robust password-based authentication

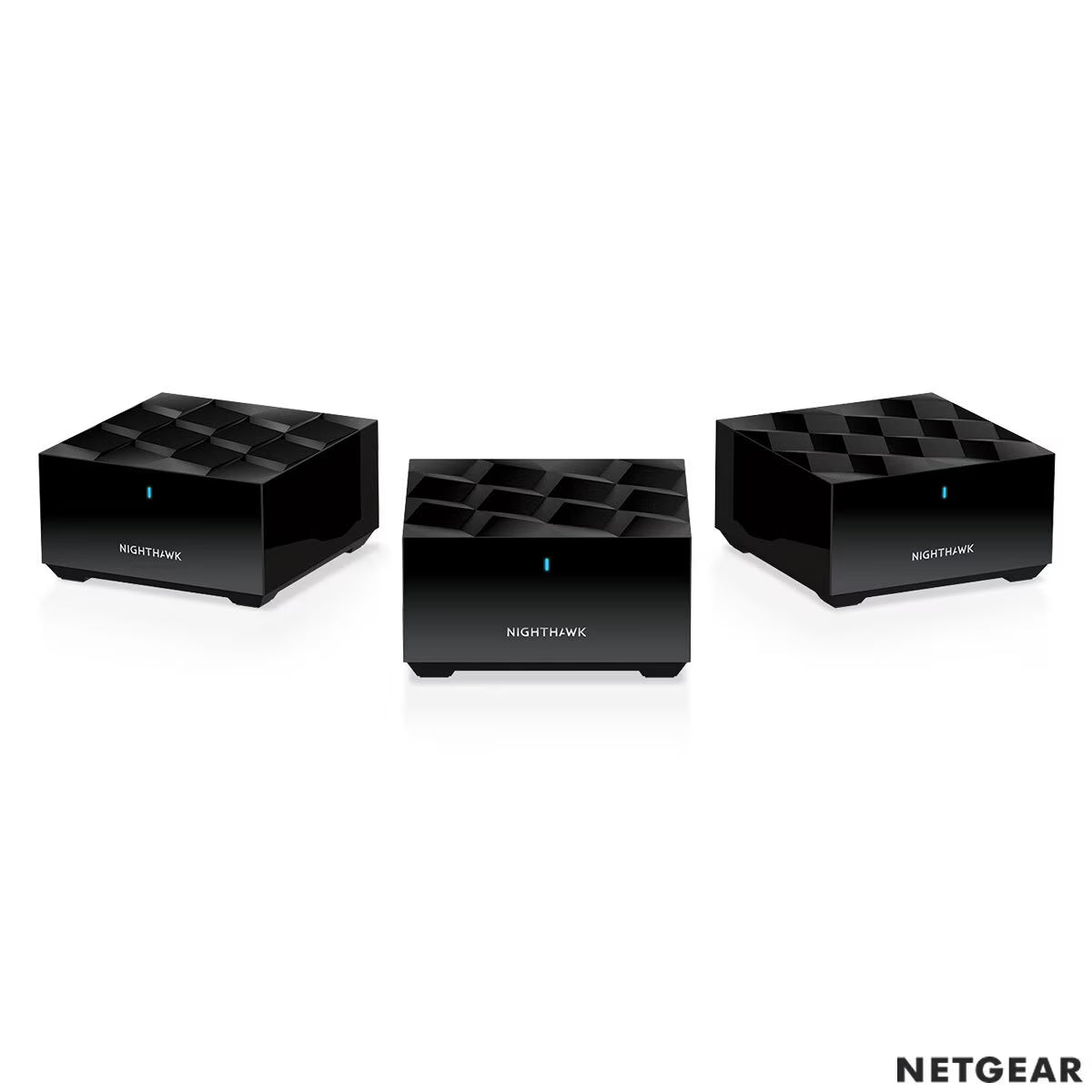

Box Contents

• One (1) Mesh WiFi 6 Router (MR70)
• Two (2) Mesh WiFi 6 Satellites (MS70)
• One (1) 2m/6ft Ethernet cable
• Three (3) 12V/1.5A power adapters
• Quick start guide

Network Requirements

• High-speed Internet connection
• Connect to existing modem or gateway

Physical Specifications

• Router (MR70):
  - Dimensions: 122 x 122 x 64 mm
  (4.8 x 4.8 x 2.5 in)
  - Weight: 0.29 kg (0.63 lb)
• Satellites (MS70):
  - Dimensions: 122 x 122 x 64 mm
  (4.8 x 4.8 x 2.5 in)
  - Weight: 0.29 kg (0.63 lb)

* This product comes with a 1-year limited warranty that is valid only if purchased from a NETGEAR authorized reseller.
† Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental
conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with
future standards. Up to 3,000Mbps wireless speeds achieved when connecting to other 802.11ax 3,000Mbps devices.
** This product includes a 1-year subscription for NETGEAR Armor. Renew your yearly subscription, for an additional fee, to protect all your connected devices.
†† NETGEAR Smart Parental Controls™ fees apply for a Premium Plan.
‡ When working with 160MHz clients as compared to a 2x2 AC router that does not support 160MHz.
1 Requires compatible AX clients with DL-OFDMA and UL-OFDMA support.
For regulatory compliance information, visit www.netgear.com/about/regulatory.
